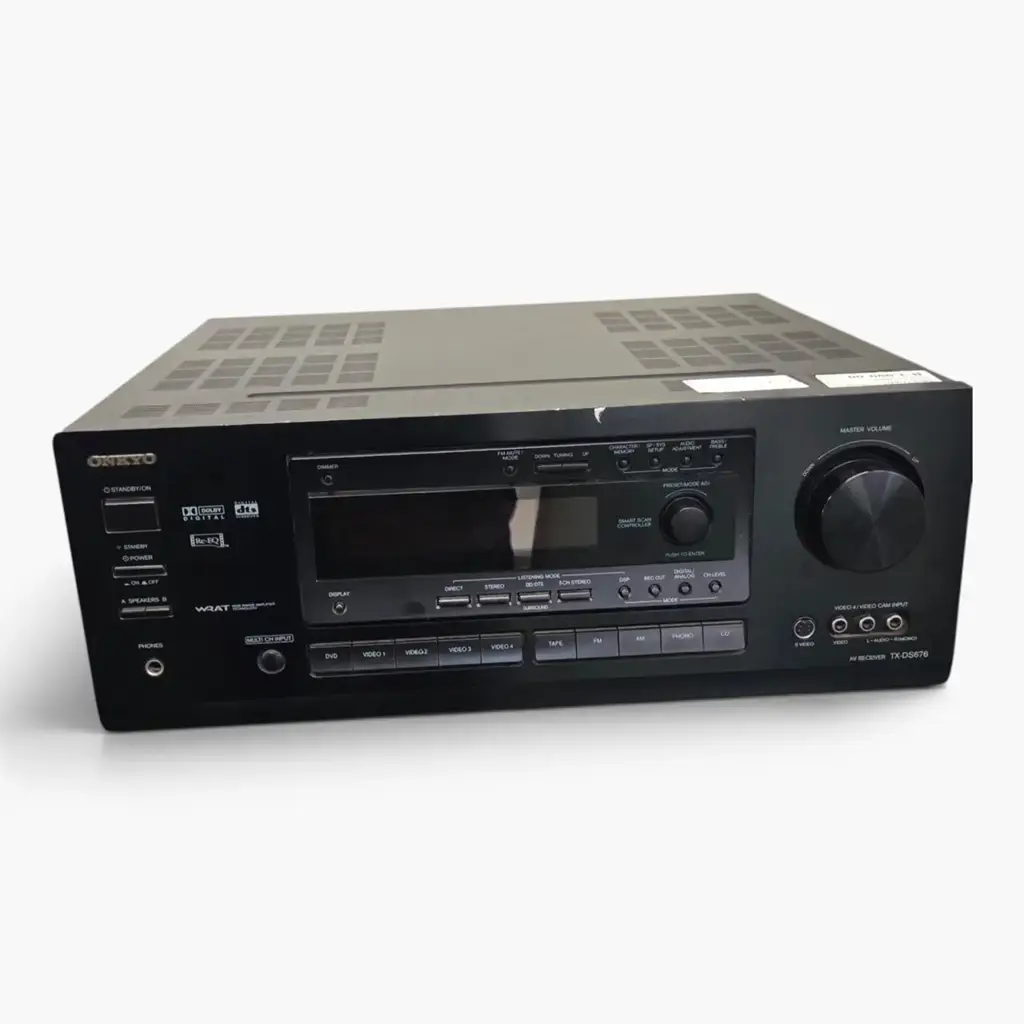

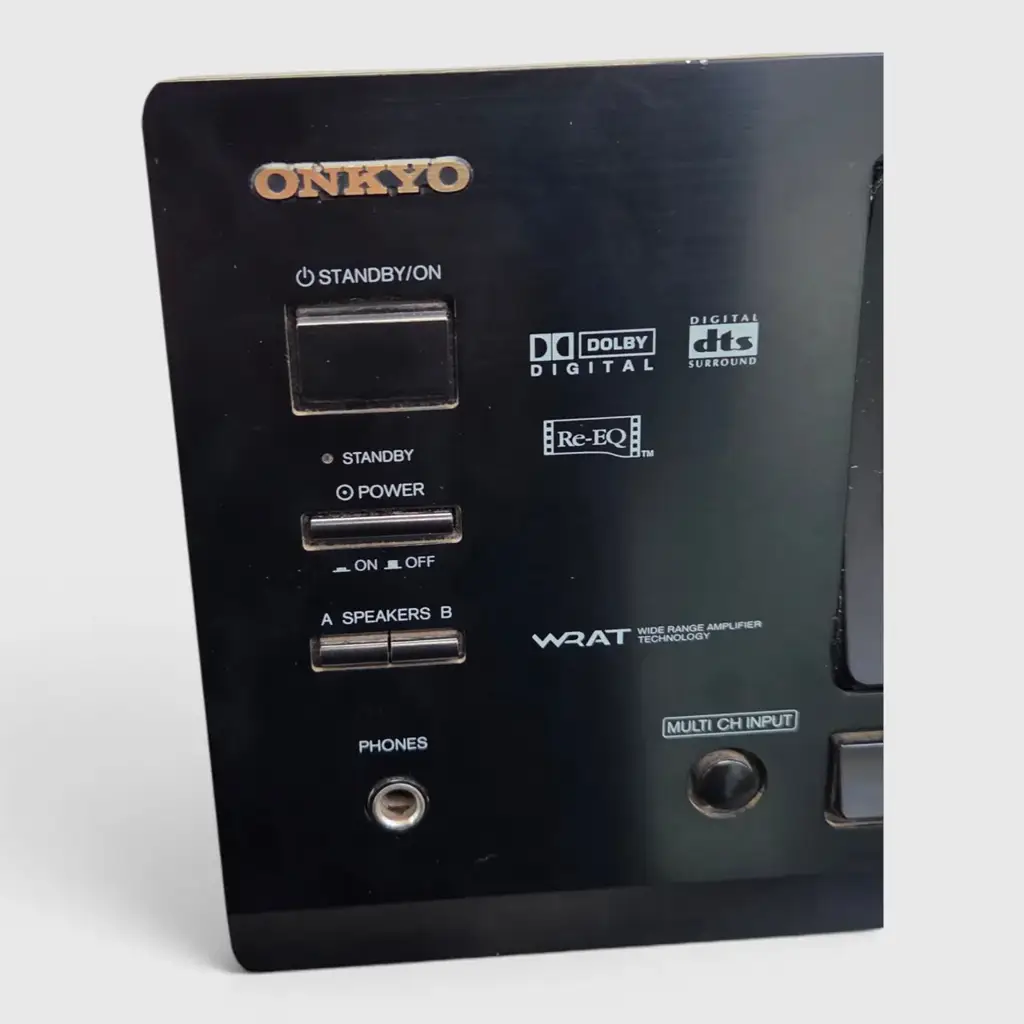

(Bay30) Onkyo Tx-Ds676

Still in good condition

Power and Amplification
Channels: 5.1-channel amplification
Power Output: 85 W per channel into 8Ω (20 Hz–20 kHz) at 0.08% THD; peak power can reach 170 W at 6Ω according to EIAJ standards

Continuous Power (DIN): 115 W at 6Ω
Total Harmonic Distortion: 0.08% at rated power
Damping Factor: 60 at 8Ω
Input Sensitivity and Impedance: PHONO – 2.5 mV / 50 kΩ, LINE (CD, TAPE, DVD, VIDEO) – 200 mV / 50 kΩ

Audio Formats and Features
Dolby Digital, DTS, Dolby Pro Logic II decoding for surround sound playback

Cinema Re-EQ™ processing by Lucasfilm Ltd., optimizing movie soundtracks for home theater acoustics
Nine DSP modes, including Dolby Digital, DTS, Pro Logic, Orchestra, Unplugged, Studio Mix, TV Logic, 5-Channel Stereo, and 3 Stereo modes
Wideband High-Resolution support via Wide Range Amplifier Technology (WRAT) for 96 kHz / 24-bit

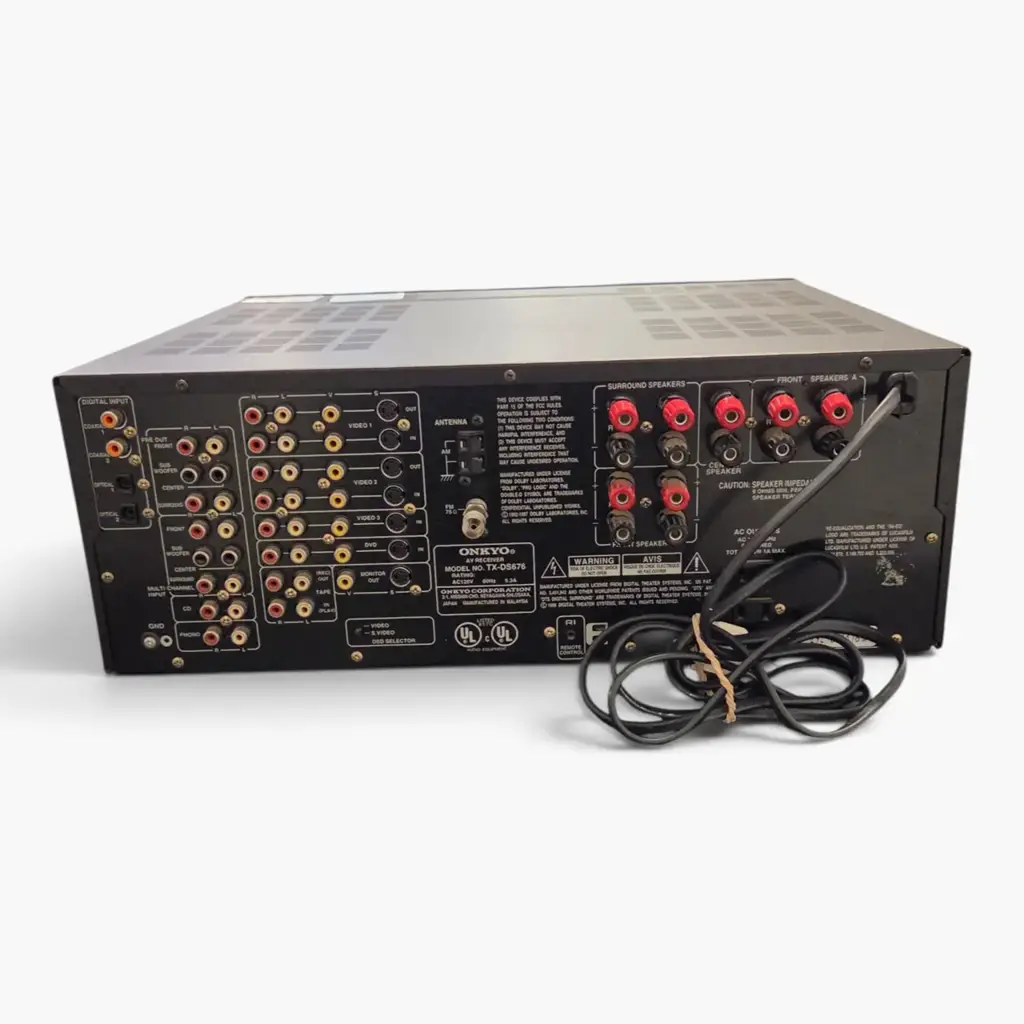

Connectivity
Analog Audio Inputs: PHONO, CD, TAPE, VIDEO 1–5
Digital Audio Inputs: 2 coaxial, 2 optical (assignable)
Video Inputs: 5 S-Video and composite connections
Front Panel A/V Input: Convenient access for portable devices and gaming consoles
Preamp Outputs: Available for all channels to connect external amplifiers or powered subwoofers

5.1-channel Input: Allows connection of external multi-channel sources like DVD

Radio and Tuner
Built-in FM / AM tuner with manual presets
Tuning Range: FM, MW
Speaker Compatibility
Impedance Range: Minimum 6Ω per speaker for front, center, and surround channels

Subwoofer Connection: PREOUT SUBWOOFER jack for powered or externally amplified subwoofers
Speaker Configuration: Supports calibration for distance, level, and size using test tones

Physical and Operational Features
Remote Control: Backlit with macro functions for multi-step operations
On-Screen Display: Menus controllable via TV interface
Setup Options: Adjustable bass, treble, speaker level, distance, surround sound mode selection
Performance Specs
Frequency Response: 20 Hz – 100 kHz
Signal-to-Noise Ratio: 80 dB (MM), 100 dB (LINE)
Output for Recording/Preamp: Line Out 200 mV, Pre Out 1 V

Additional Features
Supports multiple audio and video sources including DVD players, gaming consoles, CDs, and TV
Learning remote for ease of operation
Durable construction built to minimize signal interference and maximize sound clarity
The TX-DS676 is suitable for home theater setups, delivering clear stereo and surround sound with extensive input/output options for both legacy and modern devices, making it a versatile and reliable A/V receiver for music and movies
