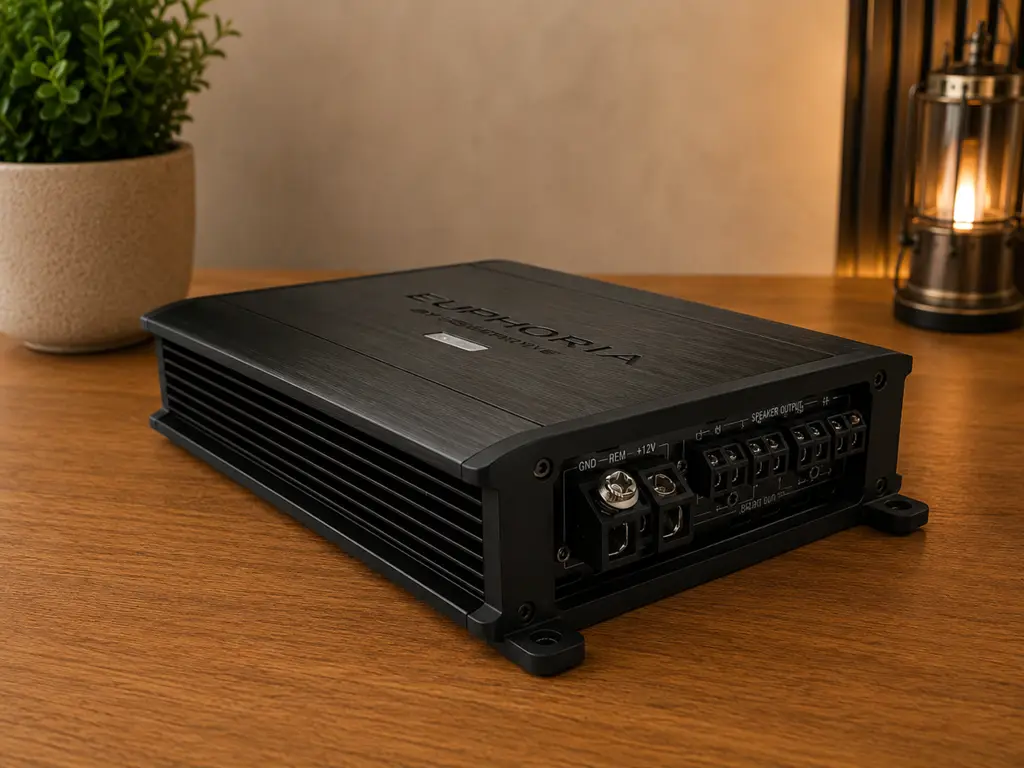

Euphoria 4 Channel Car Amplifier F475

The Euphoria F475 is a 4-channel Class A/B car amplifier delivering up to 800 watts of dynamic power, designed for high-quality audio performance with flexible crossover options and bridging capabilities.

Key Specifications and Power Output
Channels: 4-channel stereo or bridged to 2 channels
RMS Power Output:
4 x 75 Watts @ 4 Ohms
4 x 95 Watts @ 2 Ohms
2 x 300 Watts @ 2 Ohms bridged

Class: A/B full-range technology providing clean, distortion-free sound
Total Dynamic Power: 800 Watts
Input Voltage: 11–15 VDC
THD: 0.04% (100Hz @ 1Ω)
Bandwidth: 18Hz – 22kHz

Damping Factor: 100 (100Hz @ 4Ω)
Signal-to-Noise Ratio: 99 dB (weighted @ 1V)
Input Sensitivity Range: 0.20 mV – 7.0 V RMS

Features
Crossover Options: Variable High Pass, Band-Pass, or Low-Pass filters for flexible speaker setup
Channels 1-2: High Pass 50Hz – 4kHz or full-range
Channels 3-4: Selectable 3-way crossover (High Pass, Band-Pass 32Hz–4kHz, or Low Pass 32Hz–250Hz) with 12 dB slope

Bridgable Outputs: Channels can be bridged to drive subwoofers for higher power
Audiophile Grade RCA Connectors: Tiffany RCA inputs for superior signal integrity
Remote Dash Bass Control: Allows adjustment of bass from the driver’s seat
Power Input Capability: 4-gauge cable input connectors
Build Quality: Thick anodized aluminum chassis for durability and heat dissipation
